Overhead cranes

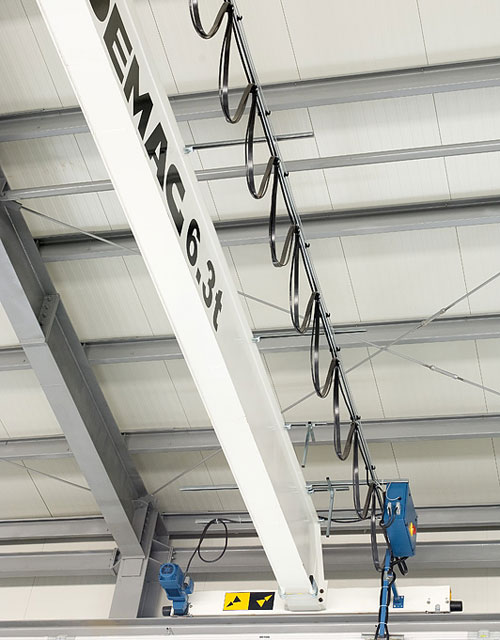

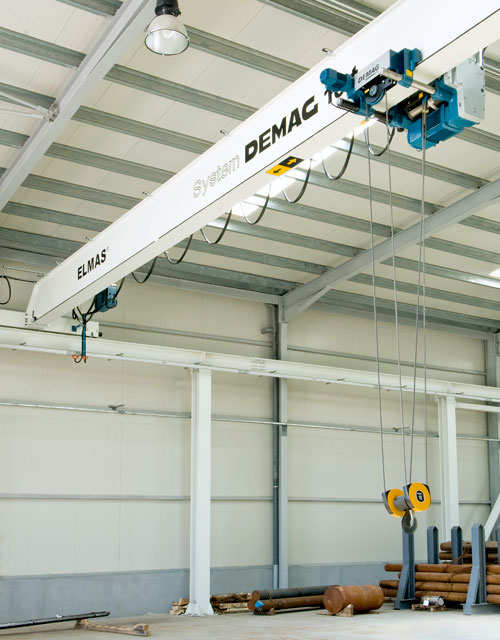

Single girder overhead cranes

• They Offer the advantage of a load dead weight
• The low-headroom hoists provide good overall dimensions
• They are designed to be controlled from the floor

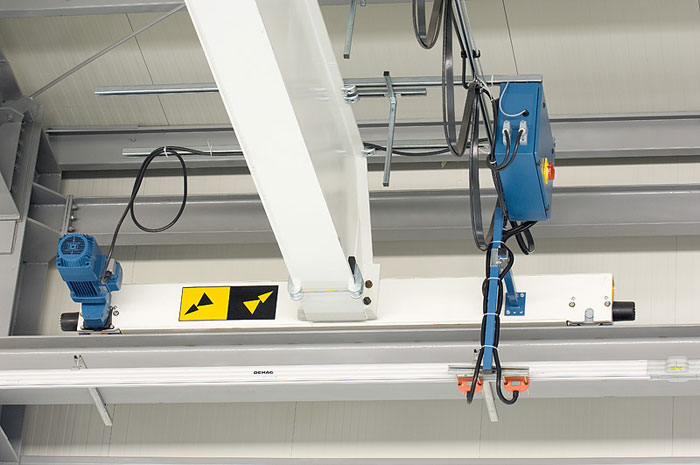

• They provide cross and long travel with two speeds

Technical data
Load capacity [t]	Span [m]	Hoist unit	Cross travel speed	Long travel speed
1	up to 24	chain hoist or rope hoist	4,6/14 m/min  respectively 5/20 m/min  other speeds possible	10/40 m/min  other speeds possible
2
3.2		rope hoist
5
6.3
8
10
